Wall-mounted Longlight 5-45°
Wall-mounted Longlight 5-45°
A rooflight series used to connect different building heights with a flat roof as the base and a vertical wall at the top.
Suitable for/Key benefits:
Roof type and material: Flat roof
Fast and easy installation
Rooflight installation pitch 5-45°
Opening width in roof min./max. 0.6-3.2 m (for venting modules 0.8-2.6 m)
Enables innovative solutions for new buildings and extensions
Adds daylight, height and space to a room
Products details
Wall-mounted Longlight solution

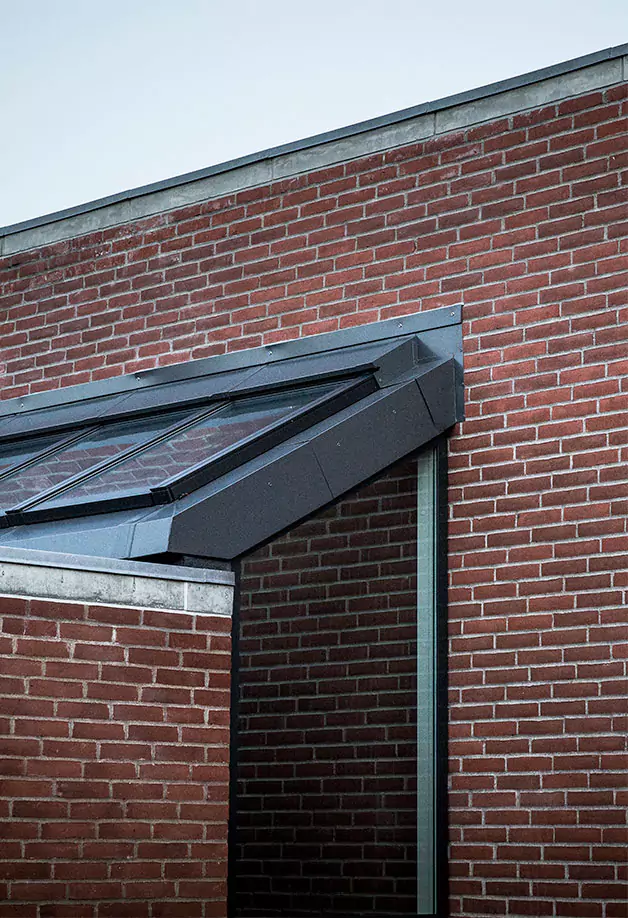

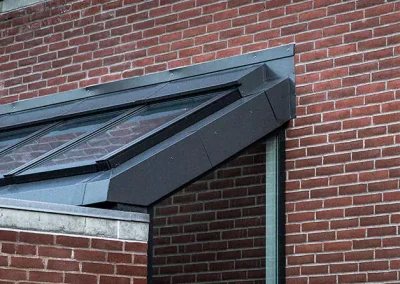

A Wall-mounted Longlight is a row of modules mounted against a vertical wall at the top of the modules. A wall height of maximum 3 m above the wall-mounted Longlight is possible.
Wall-mounted Longlights bring light further into a building when installed in a building extension. Wall-mounted Longlights also permit the joining of different ceiling heights and can be used to connect adjacent buildings. When installed at up to 45°, the wall-mounted Longlights add vertical space to the room.
VELUX modular skylights are delivered with a 10-year guarantee on modules and flashings.
Kynar 500 – Baked Enamel
1. Fixed skylight module
2. Motorized comfort venting skylight module opens up to 410mm
3. Motorized comfort venting skylight module opens up to 410mm
VELUX modular skylights require the following minimum and maximum measurements:
- Module width: 675-1000 mm
- Module height: 600-3000 mm
Pre-fabricated modular skylights
VELUX modular skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.
Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.
For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.
CAD/BIM
Get CAD/BIM objects for all major software platforms and find the right specification, product details and material information.
The VELUX modular skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.
Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems.

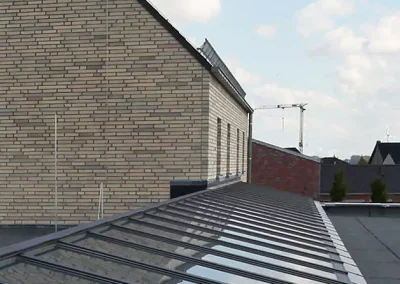

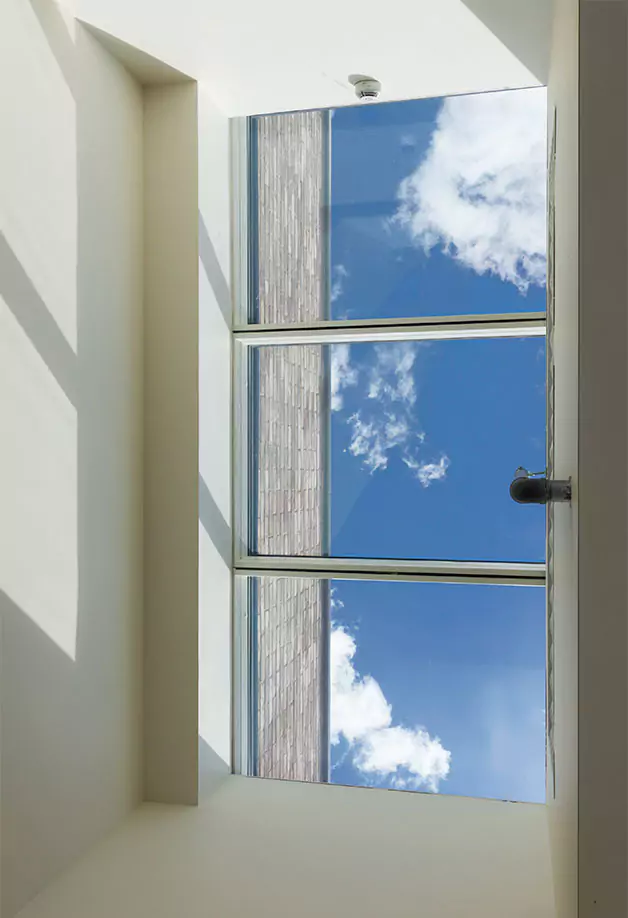

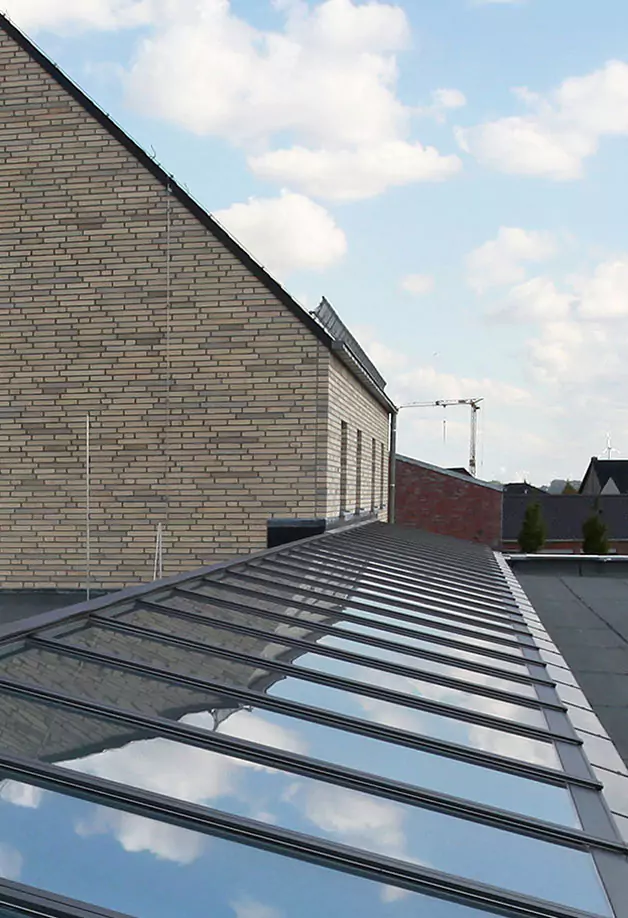

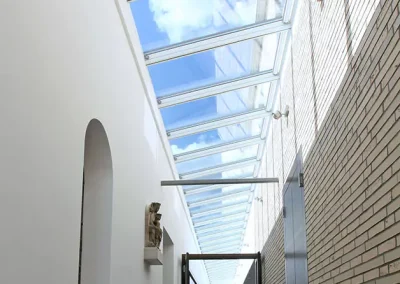

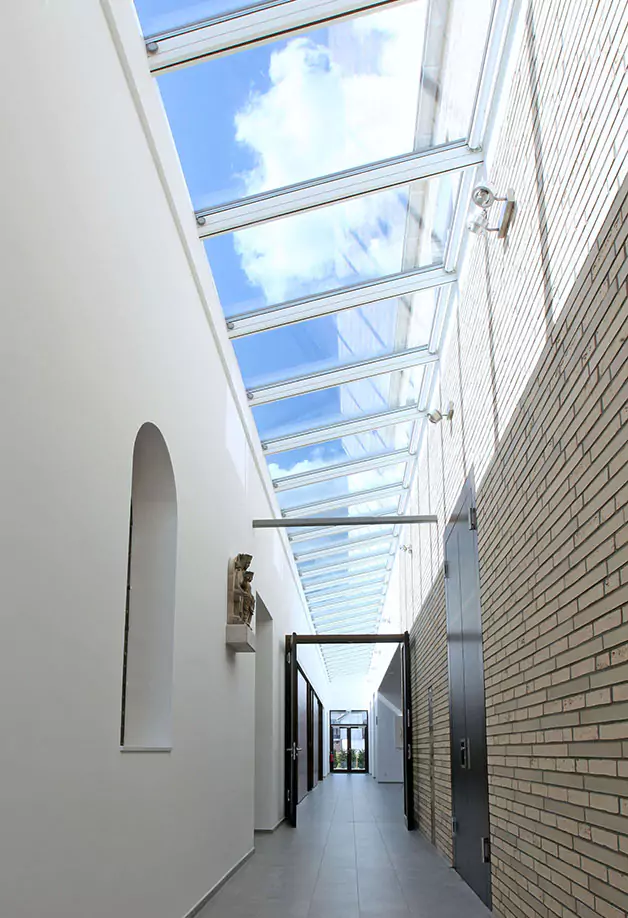

Wall-mounted Longlights
Wall-mounted Longlights are a versatile solution that can be used in many different building projects.
Wall-mounted Longlights can also be installed with a sloped roof as a base and a vertical wall at the top of the module.
Wall-mounted Longlight installed in sloped roof with sub-construction.
What Costumers Say About Us
View Gallery
FAQ
Frequently Asked Questions
1. What are the benefits of installing a skylight?
Skylights bring natural light into your space, making it feel brighter and more open. They also help lower energy bills by reducing the need for artificial lighting and improving insulation while keeping unwanted pests outside, thanks to an insect screen that can be included in some skylight designs.
2. How long does it take to install a skylight?
Installation normally takes one to two days depending on the type of skylight and the complexity of your roof. We try to finish the job efficiently with minimal disturbance.
3. Do you offer skylight repair services?
Yes, we offer skylight repair for leaks, damage, or wear. Our expert team of skylight installers will quickly fix any issues to keep your space well-lit and leak-free.
4. Can skylights save on energy?
Absolutely! Our energy-saving skylights enhance the insulation of your space, keeping it cooler during summer and warmer in winter, which might make your energy bills lower, too.
5. What does it cost to install a skylight?
The installation price will depend on the size and complexity as well as the style of the installation. Feel free to contact us for a free quote, and we’ll come up with an estimate that suits your needs.
